Grundfos SMART SUB Series

QPoint Engineering Solutions, an authorized partner of Matel Motion, presents the Grundfos SMART SUB Series. These single-phase and three-phase horizontal open well submersible pumps are designed for underwater applications, eliminating the need for priming or a foot valve, making them ideal for wells with fluctuating water levels.

Send Inquiry
Category:

Description

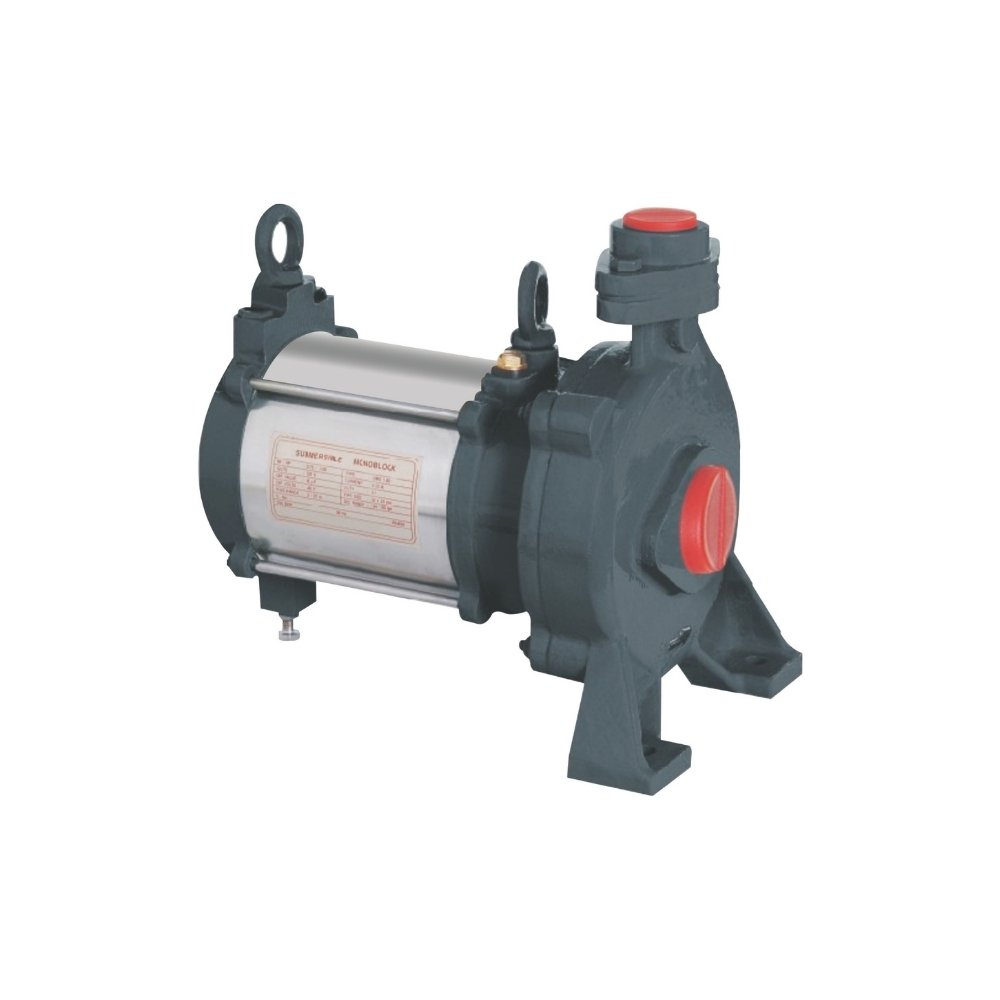

Grundfos SMART SUB Series – Open Well Submersible Pumps

QPoint Engineering Solutions, an authorized partner of Matel Motion, presents the Grundfos SMART SUB Series. These single-phase and three-phase horizontal open well submersible pumps are designed for underwater applications, eliminating the need for priming or a foot valve, making them ideal for wells with fluctuating water levels. Featuring SS thrust bearings, carbon pads, and anti-corrosive CED coating, they deliver high efficiency and durability. The pumps are locally rewindable and suitable for sump filling, farms, and fountains. Engineered for continuous duty, they handle clean water without abrasives. Contact QPoint for the Grundfos SMART SUB solution.

Applications

  • Sump to Over Head Tank Filling
  • Farms
  • Fountains
  • Industrial and rural water supply
  • Gardening
  • Landscaping

Features

  • Carbon Radial bush bearing
  • SS Thrust bearing and Carbon pads at both Drive End and Non Drive End to take care of axial thrust load
  • PVC insulated 3 core 1.5mm² motor cable
  • Anticorrosive coating on the Cast Iron parts – free from rust and corrosion
  • Winding overhang protector
  • Neck ring in the volute casing – High Efficiency
  • Locally rewindable and repairable
  • Supplied with Starter Box for 1 phase Pumps
  • Designed for continuos duty S1
  • Supplied with L. bend stainer & Cable joining kit
  • Cable Glands – To avoid ingress of water entry
  • Both water filling and drain plugs are available.

Material of Construction

  • Impeller – Noryl & Cast Iron (CED Coated)
  • Shaft – SS, Pump body – SS & Thrust ring-SS
  • Radial Bearing – Carbon
  • Mechanical Seal – Ceramic vs. Graphite
  • Thrust bearing – SS / Carbon
  • Volute casing – Cast Iron

Pumped Liquid

  • Clean, thin, non-aggressive, non-explosive, clear cold, fresh water without abrasives, solid particles or fibers.

Supply Voltage

  • 180V-240V AC, 1ph, 50Hz; 360-440V AC, 3ph, 50Hz
